HyspeeDyn actuators
HG...- series


- Nominal speed from 10.000 to 12.000 rpm
- with permanent magnet rotor, brushless, sinusoidal
   commutated.
- high power density by short and compact axial length
- high overload operating mode
- cooling with compressed air (no waters or oil cooling
   required)
- low inertia, small electrical and mechanical time constants,
- small start up- and stopping times
- 0,8 ... 6 Nm (1000 ... 7500 W),
- with integrated resolver

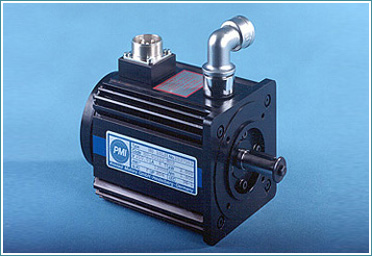

HG-Series HiSpeeDyn: brushless highspeed servo motors Made in Germany

Overview technical data high-speed servomotors series HG... - 600




HG10SS-600

HG10LS-600

HG13SS-600

HG13LS-600

Nominal torque

MN

Nm

0,8

1,6

3,2

6,0

Peak torque

Mmax

Nm

4

8

16

28

Nominal speed

nN

min-1

12.000

12.000

12.000

12.000

Power output

PN

W

1.000

2.000

4.000

7.500

Terminal voltage

UN

V

318

318

300

300

Nominal current

IN

A

2,4

4,6

9,4

18,2

All mentioned data refer to our standard types. Of course all motors also can be provided with special coils (custom-built motors).
We would be delighted to receive your enquiry.
