HollowDyn hollow shaft actuators
HWM...- series


- throughout hollow shaft with inside diameter up to 80 mm
- with permanent magnet rotor, brushless, sinusoidal
   commutated.
- high power density by short and compact axial length
- high overload operating mode
- low inertia, small electrical and mechanical time constants,
- small start up- and stopping times
- 0,2 ... 18 Nm (60 ... 5600 W),
- Nominal speed 3000 to 5000 rpm
- with integrated resolver
- deliverable with hollow shaft gearboxes up to 400 Nm

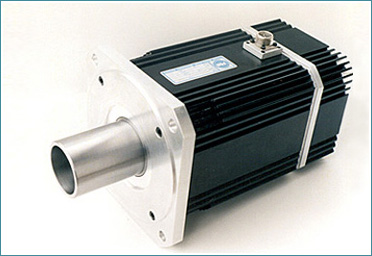

HWM-Series HollowDyn: brushless hollow shaft servo motors Made in Germany

Overview technical data HollowDyn-Actuators Series HWM... - 600




HWM10S-600

HWM10L-600

HWM13S-600

HWM13L-600

HWM16S-600

HWM16L-600

Nominal torque

MN

Nm

1

2

4

8

12

18

Peak torque

Mmax

Nm

6

12

24

48

60

90

Nominal speed

nN

min-1

3000

3000

3000

3000

3000

3000

Power output

PN

W

310

630

1250

2500

3750

5600

Terminal voltage

UN

V

306

318

318

314

314

308

Nominal current

IN

A

1,2

1,9

3,6

6,7

9,2

13,4

All mentioned data refer to our standard types. Of course all motors also can be provided with special coils (custom-built motors).
We would be delighted to receive your enquiry.
