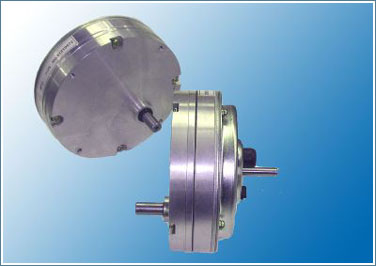

dc-ServoDisk "Pancake" actuators
...FG...-gearmotor series


- flat shape and lightweight for easy design integration
- reduction ratios from 15:1 to 150:1
- continous output torque up to 22,6 Nm
- suitable for battery operation 12 or 24 Volts
- zero cogging for smooth operation
- low inertia produces rapid, accurate response to command
   signals
- the cost effective and space saving solution



The low-voltage FG-series is a flat designed gearmotor, ideal for battery-powered applications.

Technical data overview DC-ServoDisk Gearmotors series ...FG...

Gear ratio


15:1

25:1

50:1

80:1

100:1

150:1

9FG

MN [Nm] / nN [1/min]

1,1/208

1,9/125

3,8/60

6,0/38

6,7/31

6,7/21

9FGT*

MN [Nm] / nN [1/min]

0,9/208

1,5/125

3,1/60

5,0/38

5,6/31

6,7/21

12FG

MN [Nm] / nN [1/min]

3,5/189

5,3/123

11/60

17,5/36

21,1/30

22,6/21

12FGT*

MN [Nm] / nN [1/min]

3,2/189

4,8/123

9,8/60

15,7/36

19,1/30

22,6/21









9FG

UN [V] / IN [A]

12,4/5,2

12,4/5,2

12,4/5,2

12,4/5,2

12,4/5,2

10,9/3,7

9FGT*

UN [V] / IN [A]

11,4/5,2

11,4/5,2

11,4/5,2

11,4/5,2

11,4/5,2

10,5/4,3

12FG

UN [V] / IN [A]

21,2/6,9

21,2/6,9

21,2/6,9

21,2/6,9

21,2/6,9

19,2/5,2

12FGT*

UN [V] / IN [A]

19,4/7,4

19,4/7,4

19,4/7,4

19,4/7,4

19,4/7,4

17,8/6,0

* motor with integrated tacho
