QM...- series

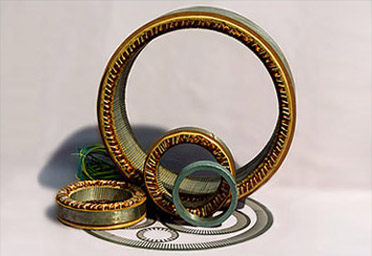

QM-Series: brushless kit servomotors up to 24 Nm for compact integration into your machine - Made in Germany

  • maximum peak torque up to 65 Nm
  • conventional motor/gearbox combinations can be replaced by a direct drive
  • no problems with hysteresis of gearbox or torsion stiffness
  • neodymium iron boron permanent magnets
  • custom-designed production makes it possible to adjust the dimensions of the QM - series to existing machine constructions.

Overview technical data torque-actuators QM...- series

QMG 090/020-6-06
 QMG 090/040-6-06
 QMG 090/080-6-06
 QMG 090/120-6-06
 QMG 090/150-6-06
rated torque uncooled execution
 Mnenn
 Mn
 1
 2
 4
 6
 7,5
rated torque water cooling
 Mnenn, mc
 Mn
 2
 4,1
 8,2
 12,3
 15,4
peak torque
 Mmax
 Mn
 3,1
 6,2
 12,4
 18,7
 23,3
maximum speed
 nmax
 min-1
 2000
 2000
 2000
 2000
 2000
Outer dia housing
 Dges
 mm
 110
 110
 110
 110
 110
total length
 Iges
 mm
 56
 76
 116
 156
 186
inner dia rotor
 di
 mm
 25
 25
 25
 25
 25
QMG 120/022-6-06
 QMG 120/045-6-06
 QMG 120/090-6-06
 QMG 120/135-6-06
 QMG 120/180-6-06
rated torque uncooled execution
 Mnenn
 Mn
 2,8
 5,5
 11
 16,5
 20,6
rated torque water cooling
 Mnenn, mc
 Mn
 5,6
 11,3
 22,5
 33,8
 42,3
peak torque
 Mmax
 Mn
 8,6
 17,1
 34,2
 51,3
 64,1
maximum speed
 nmax
 min-1
 1500
 1500
 1500
 1500
 1500
Outer dia housing
 Dges
 mm
 135
 135
 135
 135
 135
total length
 Iges
 mm
 68
 91
 136
 181
 226
inner dia rotor
 di
 mm
 35
 35
 35
 35
 35
QMG 150/020-6-06
 QMG 150/040-6-06
 QMG 150/080-6-06
 QMG 150/120-6-06
 QMG 150/150-6-06
rated torque uncooled execution
 Mnenn
 Mn
 4,2
 8,3
 16,7
 25
 31,3
rated torque water cooling
 Mnenn, mc
 Mn
 8,5
 17,1
 34,2
 51,2
 64
peak torque
 Mmax
 Mn
 13
 25,9
 51,8
 77,7
 97,2
maximum speed
 nmax
 min-1
 1000
 1000
 1000
 1000
 1000
Outer dia housing
 Dges
 mm
 176
 176
 176
 176
 176
total length
 Iges
 mm
 75
 95
 135
 175
 205
inner dia rotor
 di
 mm
 60
 60
 60
 60
 60

for obvious reasons the data listed here is only a small extract of our range - please ask for our detailed data sheet.

All mentioned data refer to our standard types. Of course all motors also can be provided with special coils (custom-built motors).
We would be delighted to receive your enquiry.

Technical data as file

Unfortunately, malfunctions may occur when displaying the data sheets directly in the browser (dimensions are not displayed completely). Please download the data sheets to your PC and open them in Adobe Acrobat Reader.

You have questions or need a special motor?

Our experts look forward to your inquiry!
