- Nominal speed from 10.000 to 12.000 rpm
- with permanent magnet rotor, brushless, sinusoidal commutated.
- high power density by short and compact axial length
- high overload operating mode
- cooling with compressed air (no waters or oil cooling required)
- low inertia, small electrical and mechanical time constants,
- small start up- and stopping times
- 0,8 ... 6 Nm (1000 ... 7500 W),
- with integrated resolver
HG...- series

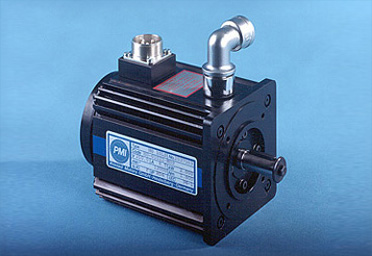

HG-Series HiSpeeDyn: brushless highspeed servo motors Made in Germany
Overview technical data high-speed servomotors series HG... - 600
| HG10SS-600 | HG10LS-600 | HG13SS-600 | HG13LS-600 | |||
|---|---|---|---|---|---|---|
| Nominal torque | MN | Nm | 0,8 | 1,6 | 3,2 | 6 |
| Peak torque | Mmax | Nm | 4 | 8 | 16 | 28 |
| Nominal speed | nN | min-1 | 12.000 | 12.000 | 12.000 | 12.000 |
| Power output | PN | W | 1.000 | 2.000 | 4.000 | 7.500 |
| Terminal voltage | UN | V | 318 | 318 | 300 | 300 |
| Nominal current | IN | A | 2,4 | 4,6 | 9,4 | 18,2 |
All mentioned data refer to our standard types. Of course all motors also can be provided with special coils custom-built motors.
Technical data as file
Unfortunately, malfunctions may occur when displaying the data sheets directly in the browser (dimensions are not displayed completely). Please download the data sheets to your PC and open them in Adobe Acrobat Reader.
