U...F... Series

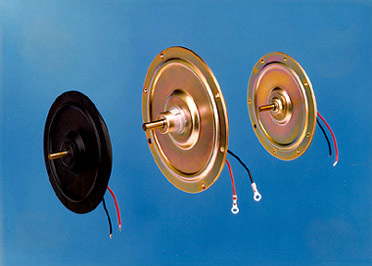

Ultraflat brushed Printed ServoMotors UF-Series

The UF-series ServoDisk motors uses the flat disc armature in an ultra-flat design to create a low cost ServoDisk motor.

  • with ferrite or NdFeB magnets
  • 0,13...0,70 Nm (32...220 W)
  • nominal speed up to 5.000 rpm
  • zero cogging for smooth operation, even at crawling speed
  • the cost effective and space saving solution

Technical data overview ServoDisk "Pancake" series U...F...

U06FNC
 U09FS
 U09FN
 U12FS
 U12FN
 U16FS
 U16FN
Nominal torque
 MN
 Ncm
 20
 13,1
 30
 35
 70
 96
 170
Peak torque
 Mmax
 Ncm
 95
 120
 200
 300
 600
 760
 1360
Nominal speed
 nN
 min-1
 3000
 3000
 3000
 3000
 3000
 3000
 3000
Power output
 PN
 W
 85
 41
 94
 110
 220
 300
 530
Terminal voltage
 UN
 V
 21
 14,5
 20
 24
 38
 43
 76
Nominal current
 IN
 A
 6,2
 6,9
 6,8
 7,7
 7,8
 9,3
 8,4

The rated data of our motors generally refer to 3000 rpm. Therefore the rated voltage are uneven. Of course our motors can operate at standard dc battery voltages of 12, 24 or 48 V.
You can find the modified values here:

Technical data as file

Unfortunately, malfunctions may occur when displaying the data sheets directly in the browser (dimensions are not displayed completely). Please download the data sheets to your PC and open them in Adobe Acrobat Reader.

You have questions or need a special motor?

Our experts look forward to your inquiry!

Get in contact
