HWM...- series

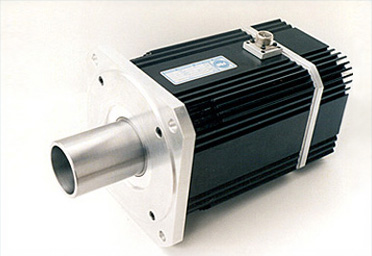

HWM-Series HollowDyn: brushless hollow shaft servo motors Made in Germany

  • throughout hollow shaft with inside diameter up to 80 mm
  • with permanent magnet rotor, brushless, sinusoidal commutated.
  • high power density by short and compact axial length
  • high overload operating mode
  • low inertia, small electrical and mechanical time constants,
  • small start up- and stopping times
  • 0,2 ... 18 Nm (60 ... 5600 W),
  • Nominal speed 3000 to 5000 rpm
  • with integrated resolver
  • deliverable with hollow shaft gearboxes up to 400 Nm

Overview technical data HollowDyn-Actuators Series HWM... - 600

HWM10S-600
 HWM10L-600
 HWM13S-600
 HWM13L-600
 HWM16S-600
 HWM16L-600
Nominal torque
 MN
 Nm
 1
 2
 4
 8
 12
 18
Peak torque
 Mmax
 Nm
 6
 12
 24
 48
 60
 90
Nominal speed
 nN
 min-1
 3000
 3000
 3000
 3000
 3000
 3000
Power output
 PN
 W
 310
 630
 1250
 2500
 3750
 5600
Terminal voltage
 UN
 V
 306
 318
 318
 314
 314
 308
Nominal current
 IN
 A
 1,2
 1,9
 3,6
 6,7
 9,2
 13,4

All mentioned data refer to our standard types. Of course all motors also can be provided with special coils custom-built motors.

Technical data as file

Unfortunately, malfunctions may occur when displaying the data sheets directly in the browser (dimensions are not displayed completely). Please download the data sheets to your PC and open them in Adobe Acrobat Reader.
