- with AlNiCo magnet material
- 0,14... 13,6 Nm (40... 4.250 W)
- nominal speed up to 5,000 rpm
- for high-dynamic applications and/or exact regulations at large speed range
- zero cogging for smooth operation, even at crawling speed
- available with tacho, optical encoder, failsafe brake and precision gearhead
JR Industrial and Defence

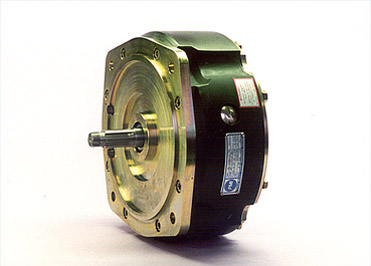

Flat brushed Printed ServoMotors JR-Series
JR-Series ServoDisk motors uses the flat disc armature in an industrial grade housing resulting in a flat alternative to conventional servomotors
Technical data overview ServoDisk series JR...
| JR12M4CH | JR16M4CH | JR24M4CH | JR25M4CH | |||
|---|---|---|---|---|---|---|
| Nominal torque | MN | Ncm | 124 | 310 | 958 | 1363 |
| Peak torque | Mmax | Ncm | 1358 | 3747 | 9700 | 13400 |
| Nominal speed | nN | min-1 | 3000 | 3000 | 3000 | 3000 |
| Power output | PN | W | 390 | 970 | 3000 | 4250 |
| Terminal voltage | UN | V | 63 | 130 | 140 | 155 |
| Nominal current | IN | A | 7,7 | 9 | 25 | 31 |
Technical data as file
Unfortunately, malfunctions may occur when displaying the data sheets directly in the browser (dimensions are not displayed completely). Please download the data sheets to your PC and open them in Adobe Acrobat Reader.
