U... and Platinum Series

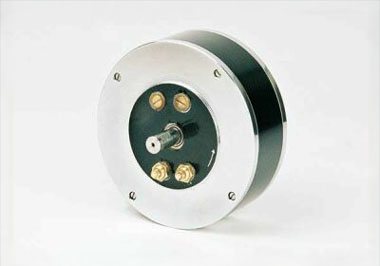

Flat brushed Printed ServoMotors U and Platinum Series

The U- and the Platinum-series use the flat disc armature. The ironless, low intertia armature delivers high acceleration and zero cogging in an exceptionally compact package.

  • with AlNiCo magnet material
  • 0,34... 1,12 Nm (94... 350 W)
  • nominal speed up to 5,000 rpm
  • for high-dynamic applications and/or exact regulations at large speed range
  • zero cogging for smooth operation, even at crawling speed
  • available with tacho, optical encoder, failsafe brake and precision gearhead

Technical data overview ServoDisk series U...

* Motor with integrated tacho
U09M4
 U09M4T*
 U12M4
 U12M4T*
 U12M4H
 U12M4HT*
Nominal torque
 MN
 Ncm
 33
 30
 82
 80
 112
 97
Peak torque
 Mmax
 Ncm
 310
 283
 861
 843
 1380
 1208
Nominal speed
 nN
 min-1
 3000
 3000
 3000
 3000
 3000
 3000
Power output
 PN
 W
 104
 94
 268
 250
 350
 305
Terminal voltage
 UN
 V
 24
 24
 43
 40
 63,5
 56,5
Nominal current
 IN
 A
 8,7
 8,7
 8,8
 8,7
 8
 8

Technical data overview ServoDisk "Platinum" series

* Motor with integrated tacho
U09D-A
 U09DT-A*
 U12D-A
 U12DT-A*
Nominal torque
 MN
 Ncm
 32
 29
 81
 74
Peak torque
 Mmax
 Ncm
 320
 290
 907
 831
Nominal speed
 nN
 min-1
 3000
 3000
 3000
 3000
Power output
 PN
 W
 109
 94
 275
 250
Terminal voltage
 UN
 V
 23
 22
 44
 40
Nominal current
 IN
 A
 8,7
 8,3
 8,7
 8,7

Technical data as file

Unfortunately, malfunctions may occur when displaying the data sheets directly in the browser (dimensions are not displayed completely). Please download the data sheets to your PC and open them in Adobe Acrobat Reader.
