- compact axial length, optimal torque/weight ratio possible in a high performance dc servo motor
- with NdFeB magnet material
- 0,13... 3,2 Nm (43... 1.000 W)
- nominal speed up to 5.000 rpm
- for high-dynamic applications and/or exact regulations at large speed range
- zero cogging for smooth operation, even at crawling speed
- available with integrated tacho (marked with asterisk * in charts below), optical encoder, second shaft end, failsafe brake and precision gearhead
KN... Series

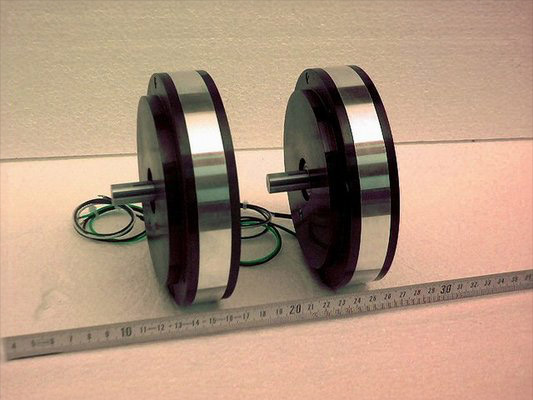

Ultraflat brushed Printed ServoMotors KN-Series
The KN-series ServoDisk motors makes use of the flat disc armature and high-energy neodymium-iron-boron magnets resulting in an ultra-thin motor. The ironless, low intertia armature delivers high acceleration and zero cogging.
Technical data overview ServoDisk Series KN...
| KN06M4 | KN09M4 | KN09M4T* | KN09M4LR | KN12M4 | KN12M4T* | KN12M4LR | KN16M4 | KN16M4T* | KN16M4LR* | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal torque | MN | Ncm | 13,7 | 45 | 42 | 40 | 136 | 128 | 80 | 320 | 290 | 215 |
| Peak torque | Mmax | Ncm | 144 | 489 | 458 | 400 | 1438 | 1352 | 720 | 3500 | 3300 | 1505 |
| Nominal speed | nN | min-1 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Power output | PN | W | 43 | 141 | 132 | 125 | 426 | 401 | 250 | 1000 | 910 | 700 |
| Terminal voltage | UN | V | 17,3 | 30 | 28 | 17 | 46 | 46 | 24 | 128 | 115 | 24 |
| Nominal current | IN | A | 4,9 | 7,8 | 7,8 | 15,5 | 9,2 | 9,3 | 14,5 | 9,3 | 9,3 | 35 |
The KN... series is also available with hollow shaft.
See following chart for maximum inner/outer shaft dia.
| KN06M4 | KN09M4 | KN09M4T* | KN09M4LR | KN12M4 | KN12M4T* | KN12M4LR | KN16M4 | KN16M4T* | KN16M4LR | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inner shaft dia | Di | mm | n/a | 8,5 | 8,5 | 8,5 | 12 | 12 | 12 | 15 | 15 | 15 |
| outer shaft dia | Da | mm | n/a | 12,7 | 12,7 | 12,7 | 17 | 17 | 17 | 20 | 20 | 20 |
The rated data of our motors generally refer to 3000 rpm. Therefore the rated voltage are uneven. Of course our motors can operate at standard dc battery voltages of 12, 24 or 48 V.
You can find the modified values here:
Technical data as file
Unfortunately, malfunctions may occur when displaying the data sheets directly in the browser (dimensions are not displayed completely). Please download the data sheets to your PC and open them in Adobe Acrobat Reader.
